1 Door LithiumVault FirePro® Single~Phase Locker Cabinet with Control Panel & Charging - CH-L1F2PG16C6K
Want to purchase this product?
Get in touch using one of the methods below
Description

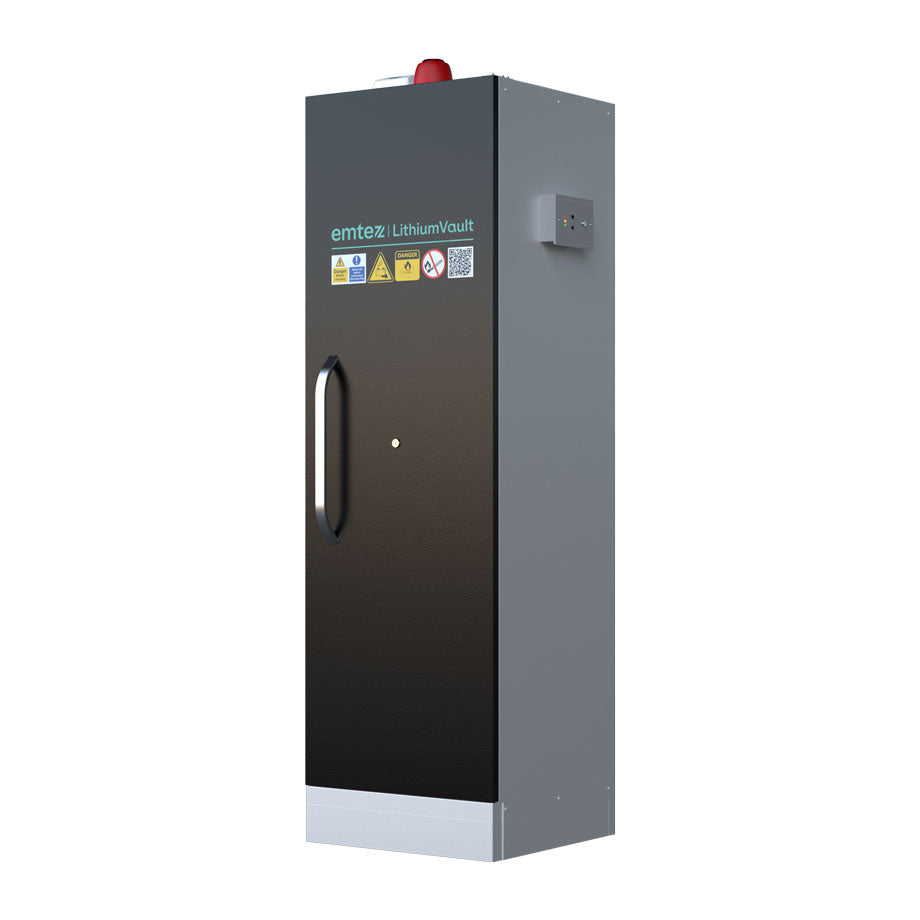

Engineered for the safe storage and charging of lithium-ion batteries with advanced fire safety features, this 1-door cabinet is certified to provide 90 minutes of fire protection.
Constructed from steel, the cabinet acts as a robust shell, safeguarding your local environment. Notable features include anti-spark hinges, stand ventilation, a self-closing door system, and an integrated spill tray, all contributing to enhanced safety measures.
The cabinet is equipped with 10A charging sockets, each within six individual lockable lockers for the isolation of batteries. It features a circuit breaker and an illuminated on/off safety switch. The suppression system is a FirePro® fire detection and automatic extinguishing generator, typically triggered by a Thermo Activator bulb, providing an additional layer of safety to mitigate potential fire incidents during the charging process. This unit also includes a control panel for more options and manual control over the FirePro® system.
In the event of a fire inside the enclosure, rock wool insulation panels, certified non-combustible A2-s1-d0 per EN 13501-1 and validated for 90-minute fire resistance through destructive testing in accordance with EN 1363-1, offer protection against thermal risks while awaiting the fire brigade's arrival.
Note:
This cabinet will be delivered stood upright, if it arrives laying down please reject it and contact us immediately.
Specifications
| External Dimensions (WxDxH) | 595 x 600 x 2050mm |
| Internal Dimensions (WxDxH) | 496 x 446 x 1540mm |
| Shelf Dimensions (WxDxH) |
495 x 420 x 39mm |
| Number of Shelves |
6 x perforated shelves |
| Doors |
1 |
| Door Locks |
1 (2 x keys supplied) |
| Lockers |
6 |
| Locker Keys | 12 (2 per compartment) |
| Charging Points | 18 (3 x power sockets per shelf) |
| Tare Weight | 210kg (empty cabinets, excl. accessories) |
| Standard Colour |
Black door with grey frame and interior |
| Power Socket: | Standard Regional Socket |
| Cable Section: | 2m 3G2.5mm2 |
| Max Amp Output: | 10A |
| Voltage: | 230V |
| Max Output: | 2,300W |
