Curtain Boom || Overall 850mm H
CB850 (1450)

Want to purchase this product?

Get in touch using one of the methods below


Phone Romold01506409973

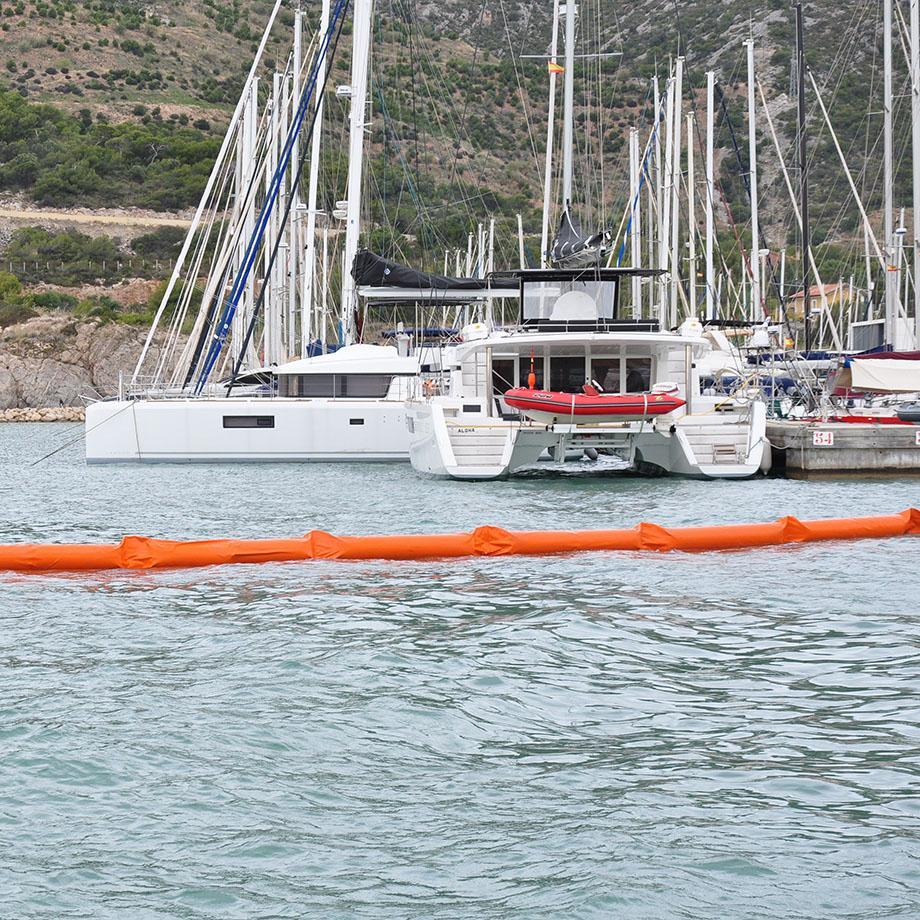

With high buoyancy to weight ratio this containment boom has have a good response to wave action making it useful in inland or sheltered water such as within a harbour. The range has excellent UV resistance and chemical resistance to acids, alkalis, solvents and hydrocarbons. We can manufacture different sizes and material types (PU and Neoprene) please contact us to discuss your application.


Freeboard: 350mm
Draft: 500mm
Overall: 850mm
GSM PVC 1450
Section length: 25
Buoyancy to weight: 6:1
Weight: 5.4kg per metre
Packaging volume: 1.20m³ per 25m
Ballast: 10mm hot dip galvanised chain
Fabric: Orange or yellow 850gsm woven polyester scrim coated with PVC
Breaking Strength: ASTM D 5035 (lengthwise & width wise 300kgf/5cm)
Operational temperature: 0°C to +80°C


Freeboard = vertical height of the product above the water

Draft = depth of the product below the water

Download a datasheet for CB850 (1450)

Download information on the CB range
