Lithium-Ion Battery Storage

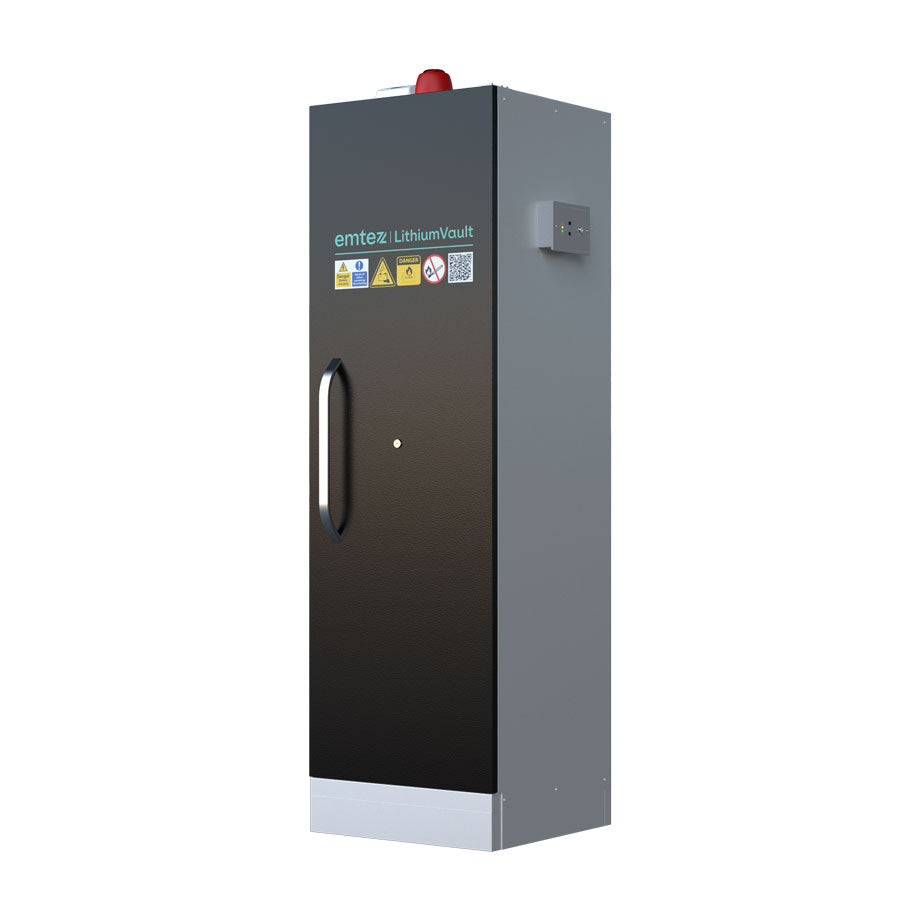

1 Door LithiumVault FirePro® Cabinet with Control Panel & Charging
CH-L1F2PGK
Want to purchase this product?
Get in touch using one of the methods below
Description
Engineered for the safe storage and charging of lithium-ion batteries with fire safety features, this 1-door cabinet is certified to provide 90 minutes of fire protection.
Constructed from steel, the cabinet serves as a robust shell, ensuring the safeguarding of your local environment. Notable features include anti-spark hinges, stand ventilation, a self-closing door system, and an integrated spill tray, all contributing to enhanced safety measures.
The cabinet is equipped with charging sockets rated at 16A, featuring a circuit breaker and an illuminated on/off safety switch. The suppression system is a FirePro® fire detection and automatic extinguishing generator typically triggered by a Thermo Activator bulb, providing an additional layer of safety to mitigate potential fire incidents during the charging process. This unit also comes equipped with a control panel for more options & manual control over the FirePro® system.
In the event of a fire inside the enclosure, rock wool insulation panels certified non-combustible A2-s1-d0 in accordance with EN 13501-1, and whose resistance to fire for 90 minutes has been validated by a destructive test in accordance with EN 1363-1, provide protection against thermal risks while waiting for the fire brigade to intervene.
Note:
This cabinet will be delivered stood upright, if it arrives laying down please reject it and contact us immediately.
Specifications
| External Dimensions (WxDxH) | 595 x 600 x 1950mm |
| Internal Dimensions (WxDxH) | 496 x 446 x 1540mm |
| Shelf Dimensions (WxDxH) |
495 x 420 x 39mm |
| Number of Shelves |
4 x perforated shelves |
| Doors |
1 |
| Door Locks |
1 (2 x keys supplied) |
| Charging Points | 24 (6 x power sockets per shelf) |
| Tare Weight | 210kg (empty cabinets, excl. accessories) |
| Standard Colour |
Black door with grey frame and interior |
| Socket Options |
Type E, type F, type G |
| Power Socket: | 4 Pole Plug |
| Cable Section: | 2m 5G6mm2 |
| Max Amp Output: | 32A |
| Voltage: | 400V |
| Max Socket Power: | 3,680W |
| Max Total Power: | 11,960W |
